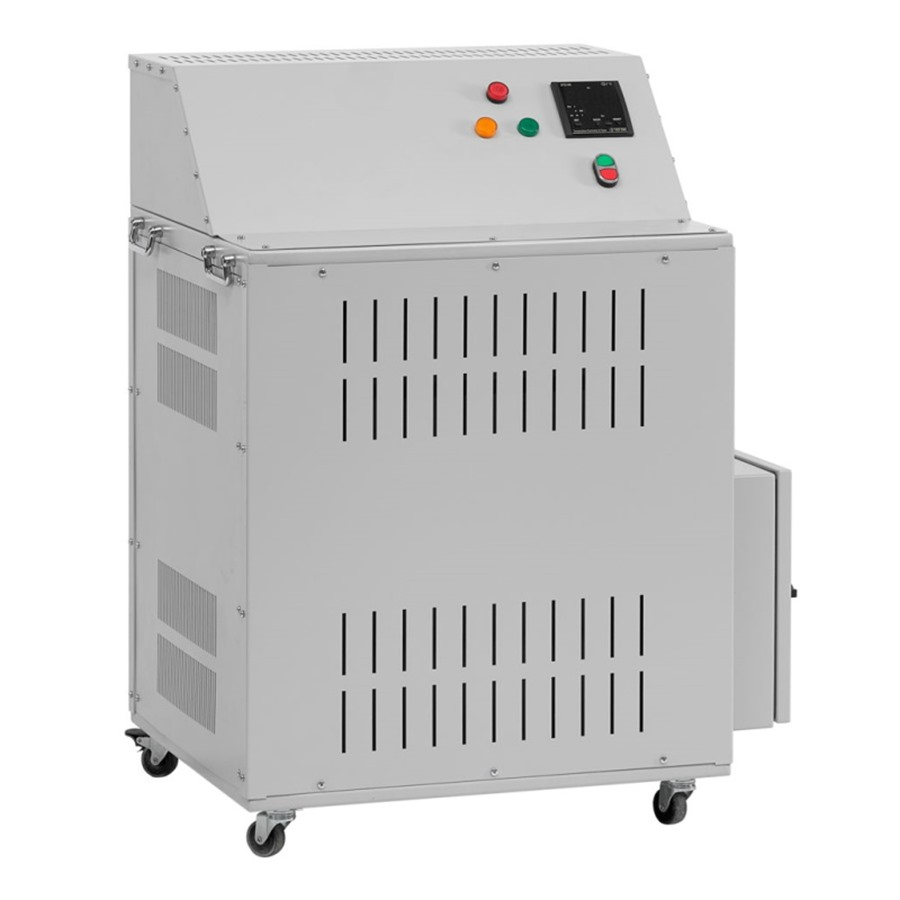

| SSG Voltage Sag-Swell Simulator General Features | |
|---|---|
| Capacity / Power | 600V-60A |

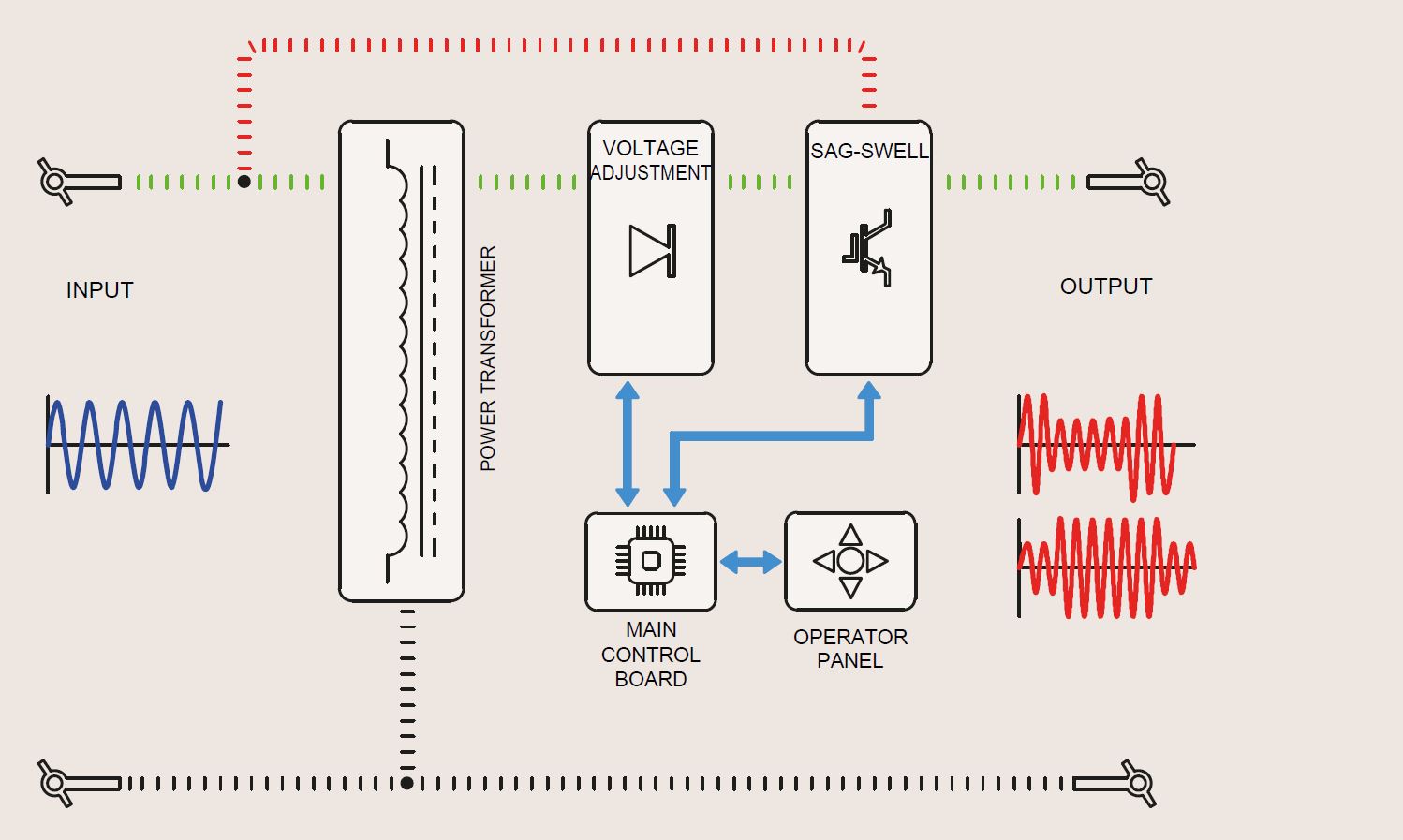

| Technology | High-speed and Durable Structure with IGBT and Thyristor Technology |
| Input | |
| Voltage Range | Test Voltage: 0V-250VAC 3Phase+Neutral+Ground |
| Voltage Tolerance | -%25 , +%15 |
| Frequency | 50 Hz. +/-%5 (60 Hz. optional) |
| Output | |
| Voltage Range | It can be adjusted between 0V-%150 Vnominal |
| Voltage Tolerance | +/-%2 |
| Output Current | 60 A |
| Test Duration | It can be adjusted between 10msec-999sec. |
| Voltage SAG Test | Adjustable between 0% and 100% Vnominal in 2% steps |
| Voltage Swell Test | Adjustable between > 100% Vnominal and 150% Vnominal in 2% steps |
| Management Monitoring and Communication Interfaces | |
| Touchscreen Operator Panel | 7" Touch Color screen Input Voltage, Output Voltage, Output Current, Battery current, Boost Voltage,Float voltage, Boost Timer, LVD voltage, Date-time, Status and Fault information, Parameter settings |
| Remote Management Interface | Browser-based remote management with Ethernet connection MOD-BUS RTU with RS485 connection |
| Protection Functions | |
| Voltage Protection | Electronic Protection for Low Voltage and High Voltage (optional) |
| Current Protection | Input Circuit Breaker (Output Circuit Breaker optional) |
| Overload Protection | Electronic Over Temperature Protection (Fan cooling works at 50°C. At 80°C, the power to the load is cut off.) |
| Emergency Shutdown | Quick-off button of input power for emergency |
| Environmental Conditions | |
| Operating Temperature | -10 °C ~ +40 °C |
| Altitude Operating Height | 1.500m |
| Humidity | 90% none condensed |
| Cabinet Specifications | |
| Type–Protection Class | Free Standing Modular Cabinet, IP21 Indoor type |
| Paint–Color | Epoxy-Polyester Powder Paint - RAL 7035 |
| Cooling | Forced air cooling with thermostat controlled fan |
| OPTION | CODE | DESCRIPTION |
| Non-standard input voltage value | xxxV | SSG series simulators can be produced at any required input voltage value that must be stated clearly by the order confirmation. |
| Non-standard output voltage value | xxxV | SSG Series simulators can be produced at any required output voltage value that must be stated clearly by the order confirmation. |
| Power Analyzer | PA | Power Analyzer can be added to measure device input and/or output parametres |
| Non-standard output voltage value | xxxV | SSG series simulators can be produced at any required output voltage value that must be stated clearly by the order confirmation. |
| Non-standard frequency | FRQ | SSG series simulators are produced to function with 50 Hz network frequency. If 60 Hz is required this must be stated cleary on order confirmation. |
| Output protection CB | OCB | Optional MCCB may be added to the simulator output to provide additonal protection. |
| IsolotionTransformer | TRF | Isolation Transformer or Voltage Changing Auto-Transformer can be supplied for both input and output of SSG Sag-Swell simulators . Reguired transformer specifications must be given by the order |
| Special Enclosure | K | SSG Series simulators can be produced both INDOOR and OUTDOOR in special cabinets having different IPXX protection classes. |
| EMC Filter | EMC | Specially designed EMC-Filters can be added optionally to the both input and output of SSG Sag-swell simulators. Filter specifications must be stated by offer/order. |
| Surge Arrester | ESD | High-Voltage Protection and Surge Arrester can be added to the both input and output of SSG Sag-swell simulators. The required protection classes and the specifications (CLASS-I,CLASS-II,CLASS-III) must be given with the order. |
| Remote monitoring and management unit | RMU | For remote monitoring and managing of SSG sag-swell simulators, Remote Management and Monitoring unit can be added optionally. No any other software is needed for this RMU unit which provides a browser based communication over LAN- connection or internet. |
| Dry contacts | C | NO-NC dry contactor sockets can be applied for ON-OFF and Automatic By-Pass modes of the simulators. |
| Non-standard Input/Output terminal | T | According to the various customer needs. Input and output terminals can be designed and located specially on the cabinet. The required terminal drawings must be supplied together with the offer/order. |
| Special design and accessories | SPM | SSG sag-swell simulators can be designed specially with respect to direct customer needs and technical specifications. All special requirements and detailed technical drawings and specifications for accessories must be provided by the customer at the offer/order stage |
| Special operating temperature | SOT | Custom devices those can operate in special operating temperatures can be manufactured on demand. |
|
