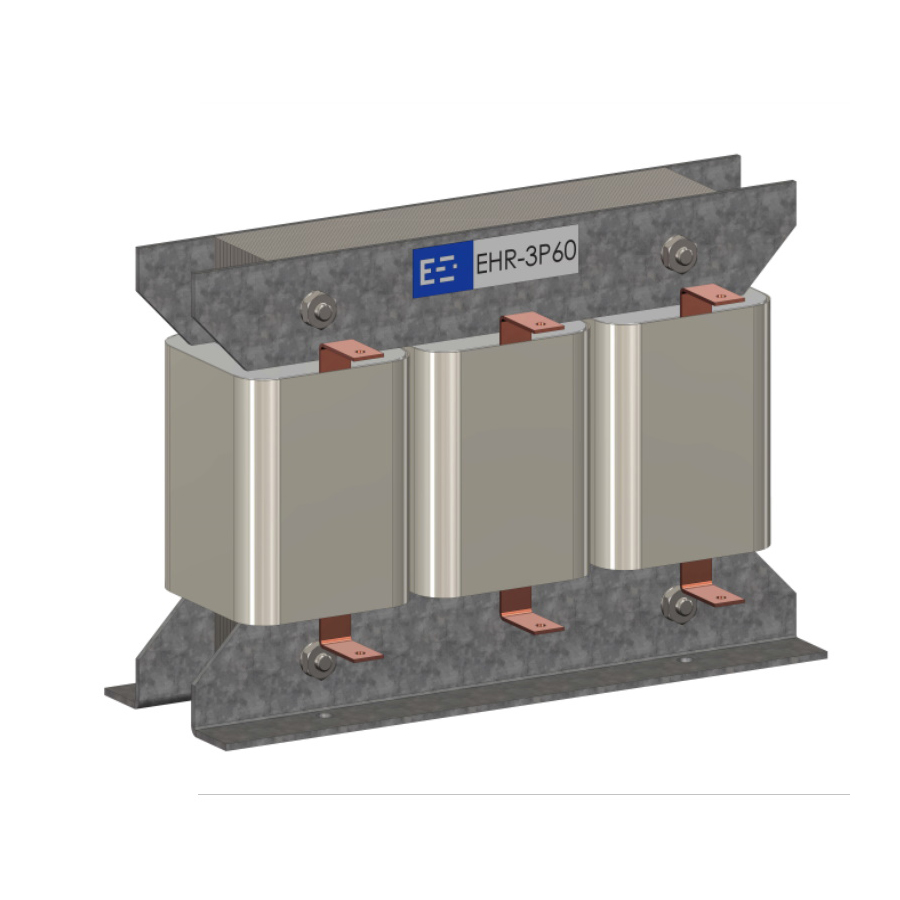

EHR-M Motor Reactor

It is used between motor drives and frequency inverters and motor. It filters high-frequency signals originating from motor drives and reduces inrush currents. It protects drives and inverters in short circuits in motor windings. It is designed and produced in accordance with the technical specifications and filtering needs of motors and motor drivers.

●Motor Reactors
●Copper and Aluminum winding
●High efficiency sheet core
●Varnishing under vacuum
●Oven drying at high temperature
●Three Phases and single Phase
EHR Reactors Technical Features
Power(KVAR) / Current(A)Between 4KVAR - 600KVAR
DesignOpen type
Rated Voltage3 Faz 400VAC (Different Voltages are optional)
Rated CurrentBetween 6A-870A
Frequency50 Hz. +/-%5 (60 Hz. Optional)
CoreHigh Efficiency Sheet Core
WindingsCopper or Aluminum wire with fiberglass or enamel insulation
Insulation ClassF (H class is optional)
Protection ClassIP00
Production MethodVarnishing under vacuum - firing on high temperature
Operating Temperature-10 °C ~ +40 °C
Altitude Operating Height1.500m
Humidity90% none condensed
Protection ClassIP00
