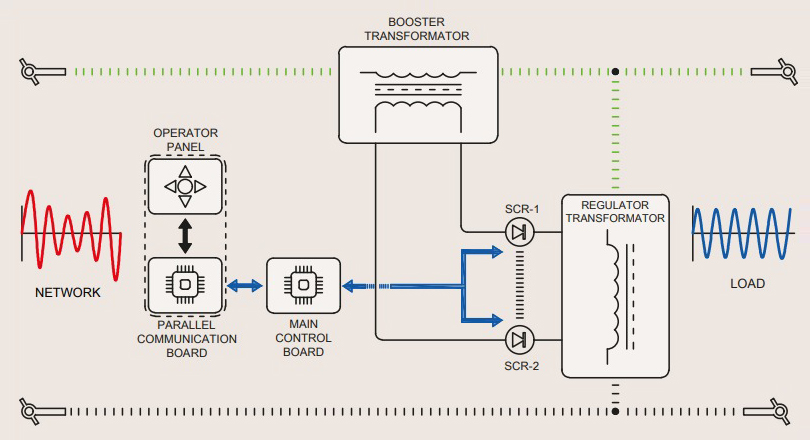

| Vor Parallel Voltage Stabilizer Technical Features | |||||
|---|---|---|---|---|---|
| Power (kVA) | 60 KVA | ||||

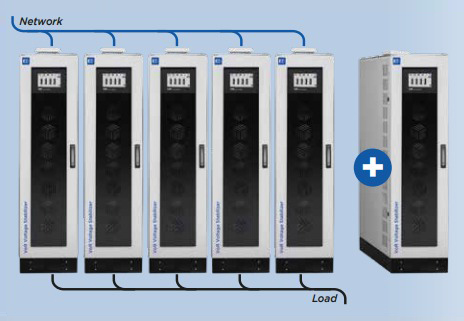

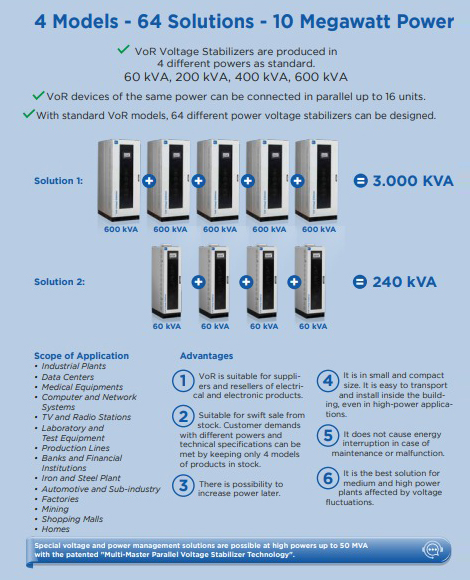

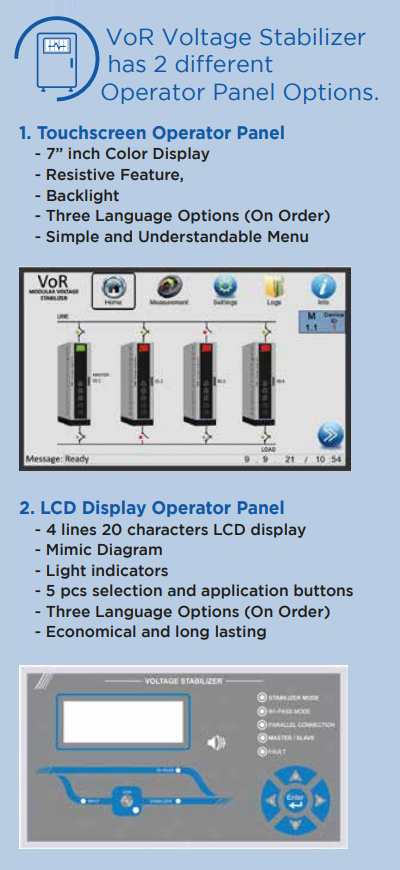

| Number of Parallel Connection | Up to 16 units can be connected in parallel | ||||
| Maximum Power | 10 MegaWatt with standard models (50 MegaWatt with special production devices) | ||||
| Input | |||||
| Rated Input Voltage | 400VAC 3Phase + Neutral + Ground (Different Voltage Values are Optional.) | ||||
| Voltage Tolerance |
| ||||
| Frequency | 50Hz +/-5% (Optional 60Hz) | ||||
| Output | |||||
| Rated Output Voltage | 400VAC 3Phase + Neutral + Ground (Different Voltage Values are Optional.) | ||||
| Voltage Tolerance | +/-2% (+/-1% and +/-3% are optional for special applications) | ||||
| Frequency | 50 Hz ± 5% | ||||
| Overload Capacity | 125% 1 minute, 150% 10 seconds, 151% and above 0.2 seconds | ||||
| Response Time | 20 msec | ||||
| Correction Time | 100 msec - 200 msec | ||||
| Efficiency | > 97% typical | ||||
| Management, Monitoring and Communication Interfaces | |||||
| Operator Panel With LCD Display | 4 lines 20 characters LCD display and Mimic Diagram. Input Voltage, Output Voltage, Load Percentage, Frequency, Status Information, Fault Information, Parameter settings | ||||
| Touchscreen Operator Panel (optional | 7" Touchscreen Color Display, Input Voltage, Output Voltage, Load Percentage, Frequency, Number of parallel connections, Status Information, Fault Information, Parameter settings | ||||
| Parallel Communication Interface | CAN-BUS communication up to 100 meters with CAT-5 cable | ||||
| Remote Management and Monitoring Interface | Browser-based remote management with Ethernet connection. MOD-BUS RTU with RS485 connection | ||||
| Protection Functions | |||||
| Voltage Protection | Electronic protection for Low Voltage and High Voltage | ||||
| Current Protection | Input Circuit Breaker (Output Circuit Breaker optional) | ||||
| Overload Protection | 1 minute at 125% overload, 10 seconds at 150% overload, 0.2 seconds over 151% overload, after the power to the load is cut off. | ||||
| Over Temperature Protection | Fan cooling works at 50 °C. At 80 °C, the power to the load is cut off | ||||
| Surge Arrester | Class-I or Class-II (optional) | ||||
| Environmental Conditions | |||||
| Operating temperature | -10 °C ~ +40 °C | ||||
| Altitude Working Height | 1.500m | ||||
| Humidity | 90% none condensed | ||||
| Acoustic Noise | < 55dB | ||||
| Cabinet Specifications | |||||
| Type – Protection Class | Free Standing Modular Cabinet, IP21 Indoor type (IP54 and higher protection class, Outdoor Type Cabinets are optional) | ||||
| Paint-Color | Epoxy-Polyester Powder Paint - RAL 7035 | ||||
| Cooling | Air cooling with thermostat controlled fan. | ||||
| OPTION | CODE | DESCRIPTION |
|---|---|---|
| Non-standard Operating voltage value | xxxV | VOR series voltage regulators can be produced at any required operating voltage value that must ve stated clearly by the order confirmation. |

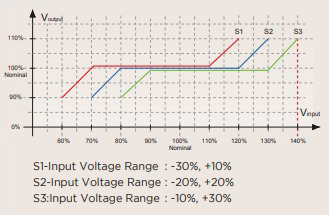

| Non-standard operating voltage range | XS,M,L,XL | VOR series voltage regulators can be produced at different input voltage range. The required levels must be stated clearly by the order confirmation. Maximum input voltage range: -%60, +%40 |
| Non-standard output voltage tolerance | 4T,5T, 4C,5C | Output voltage tolerances of regulators can be +/-1%, +/-2%, -3%, +/-5% |
| Adjustable output voltage | ADJ | Output voltage of VOR series regulators can be adjusted by the LCD panel. Maximum adjusting range is +/-15% |
| Non-standard frequency | FRQ | VOR series voltage regulators are produced to function with 50Hz network frequency. If 60 Hz is required this must be stated cleary orderconfirmation. |
| Output protection MCCB | OCB | Optional MCCB may be added to the regulator output to provide additional protection. |
| Manual By-Pass | MBP | Manual By-Pass unit may be added to the output of VOR series voltage regulators. |
| Automatic uninterruptible By-Pass | ABP | Automatic Uninterruptible By-Pass unit may be added to the output of VOR series voltage regulators. |
| Isolation Transformer | TRF | Isolation Transformer or Voltage Changing Auto-Transformer can be supplied for both input and output of VOR series voltage regulators. Reguired transformer specification must be given by the order |
| Special enclosure | K | VOR series voltage regulators can be produced both INDOOR and OUTDOOR in special cabinets having different IPXX protection classes. |
| EMC Filter | EMC | Specially designed EMC-Filters can be added optionally to the both input and output of VOR series voltage regulators. Filter specifications must be stated by offer/order. |
| Surge Protector | SPD | High-Voltage Protection and Surge Arrester can be added to the both input and output of VOR series voltage regulators. The required protection classes and the specifications (CLASS-I, CLASS-II, SLASS-III) must be given with the order. |
| Remote monitoring and management unit | RMU | For remote monitoring and managing of VOR series voltage regulators, Remote Management and Monitoring unit can be added optionally.No any other software is needed for this RMU unit which provides a browser based communication over LAN- connection or internet. |
| Dry contacts | C | NO-NC dry contactor sockets can be applied for ON-OFF and Automatic By-Pass modes of the regulators. |
| Non-standard Input/Output terminal | T | According to the various customer needs. Input and output terminals can be designed and located specially on the cabinet. The required terminal drawings must be supplied together with the offer/order. |
| Special design and accessories | SPM | VOR voltage regulators can be designed specially with respect to direct customer needs and teachnical specifications. All special requirements and detailed teachnical drawings and specifications for accessories must be provided by the customer at the offer/order stage. |
| Parallel connection management unit | PCM | Up to 4 svs units can be connected in parallel for special high power aplications. A PCM unit is used for management and syncronization when svs unit are connected in parallel. |
| Special operating temperature | SOT | Custom device these can operate in special operating temperatures can be manufactured on demand. |
| Wooden Case | WCR | Wooden case and special packaging compatible with international shipment standards |
|
